badassBox for SHIMANO motors

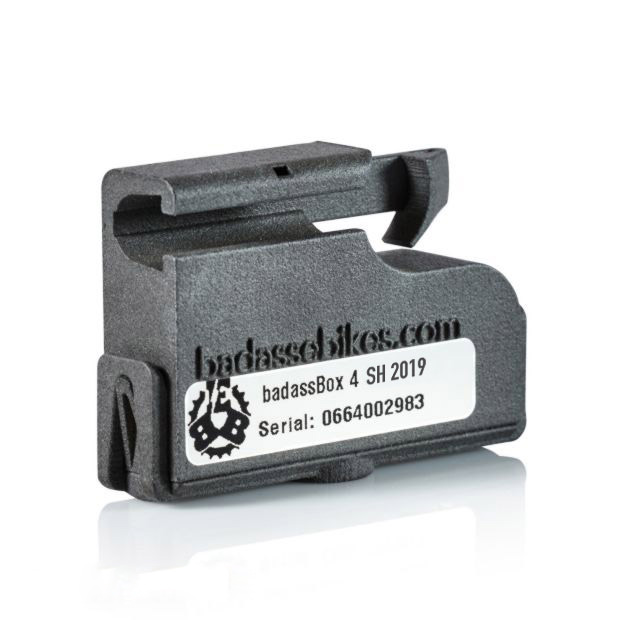

Attention, only the sensor on the left is compatible.If you have the other sensor this is the right box for you: badassBox 4 Shimano 2020 Badass eBikes proudly presents: the newly upgraded badassBox 4 Shimano 2019 The badassBox 4 is the result of more than a year's development. We have completely re-designed the casing, made it more streamline and replaced the o-ring of the previous version with our patented snap-lock fastening. Making it more streamline makes it even easier to fit. The new snap-lock fastening means you can attach and remove your badassBox with just one hand in seconds. At customer's request, we have additionally added an optional securing feature on the snap lock using a cable tie. The CR2 battery has been replaced with a AAA battery, so you can pick up replacement batteries much cheaper on just about any street corner. Tool-free battery change can be carried out quickly and easily while you're on the road. We recommend replacing the battery at least once a year at the start of the season. Due to our specially patented field enhancement technology FEET (Field Enhancement & Elimination Technology) you get very far with one battery. To protect against moisture and mechanical stress, the electronics are glued into the casing and completely sealed with a special potting compound. The badassBox is developed and manufactured exclusively by us in-house. Before and after casting we check each badassBox individually. Customer satisfaction and quality are our top priorities. If you have any questions, don't hesitate to ask – we'll get back to you with an answer straightaway, mostly on the same working day. Due to the high quality and our focus on customer satisfaction, we additionally offer a 1 month money-back guarantee. In a nutshell The badassBox is attached to the speed sensor of the e-bike and overrides the 25 km/h speed limit. Remove it and your e-bike is restored to its original state. Contactless e-bike tuning Streamlined, registered design for casing Patented snap-lock fastening Securing feature on the housing Auto industry potting compound Doubled quality control Made in Germany One month money-back guarantee Replaces badassBox 4 Shimano and badassBox 4 Shimano Freeze Compatible and tested up to firmware 4.9.3 Compatible with electronic gearshift (Di2) Installation The badassBox 4 Shimano 2019 is fitted over the Shimano speed sensor next to the rear wheel. When the snap-lock clicks into position, the badassBox is fitted securely to the sensor. For extra secure fitting, the badassBox can also be fastened with a cable binder. When the badassBox is first fitted, the spoke magnet that comes with it must be mounted in place of the original magnet. Without the badassBox, our spoke magnet functions identically to the original magnet, but when the badassBox is fitted, the spoke magnet is necessary for our patented field enhancement technology to work properly. Once the badassBox has been fitted onto the sensor, the spoke magnet must be offset to the casing edge in the direction of the snap-lock clasp. It's now ready for use. Following removal of the badassBox, the spoke magnet must be returned to its original position. .responsive-video { position: relative; padding-bottom: 56.25%; padding-top: 30px; height: 0; overflow: hidden; } .responsive-video iframe { position: absolute; top: 0; left: 0; width: 100%; height: 100%; } How it works The contactless and wireless badassBox transmits a modified signal in order to override the speed limit of your e-bike – without interfering with the motor's electronic circuitry or software. There's no need to open the motor and there is no risk of damaging it. The badassBox can be fitted in seconds – and just as quickly removed, restoring your e-bike to its former road-legal condition. For all these advantages, a wrong speed, and values derived from it, are displayed. We recommend the use of GPS-related accessories for a more precise data acquisition of driving data (smartphone, bike computer, etc.). Technical data Dimensions   61 x 40 x 15 mm Weight badassBox 27 g including battery 37 g Battery 1.5 V AAA battery (IEC R03)

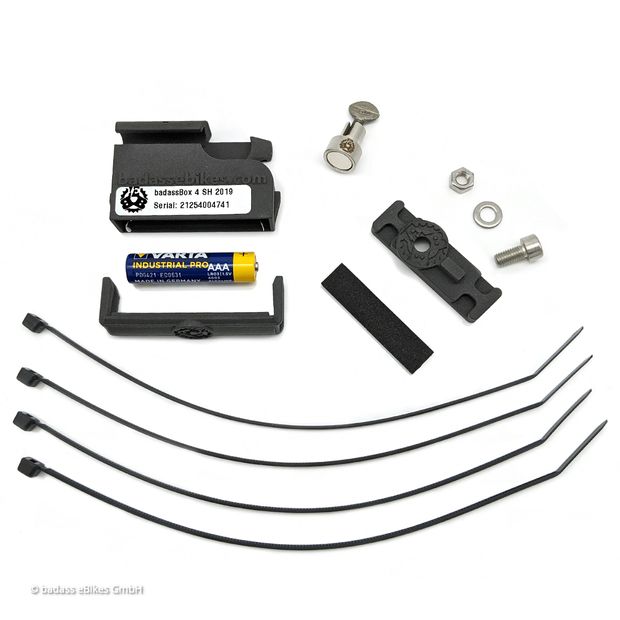

Attention, you need this set only if the Shimano Sensor SM-DUE10 (first picture) is integrated in the dropout of your bike. If the integrated sensor looks like the one in the second picture, then it is the SM-DUE11 from Shimano. Then you need the badassBox 4 Shimano 2020. If the Shimano Sensor (first picture) is mounted easily accessible on your chainstay, you only need a badassBox 4 Shimano 2019. Badass eBikes proudly presents: Das neue badassBox 4 Shimano X-Set The badassBox 4 Shimano X-Set includes all the parts you need to mount the badassBox 4 on your e-bike with a Shimano mid-mounted motor and Shimano Sensor integrated in the dropout: badassBox 4 Shimano 2019 Universal Adapter Spoke magnet with thumb screw With the badassBox 4 Shimano X-Set you not only get all the necessary parts to tune your e-bike in one 'click', but you also save money. Installation The integrated Shimano Sensor is located in the area of the dropout. To get to the sensor you have to dismount the rear wheel. Find the position of the integrated sensor* in the dropout of your e-bike. *The sensor shape shown is an example. Undo the screws of the bracket that holds the sensor* is fastened to the dropout. *The sensor shape shown is an example. Fasten the Universal Adapter with cylinder head screw, washer and nut (included in delivery) to the Shimano Sensor*. *The sensor shape shown is an example. Now you can attach the Universal Adapter with mounted Shimano Sensor* on the chainstay with supplied cable ties. *The sensor shape shown is an example. Slide the badassBox onto the adapter until it clicks into place. Reinstall the rear wheel. Mount the spoke magnet and align it with the edge of the badassBox housing. That's it. Have fun with your faster e-bike!

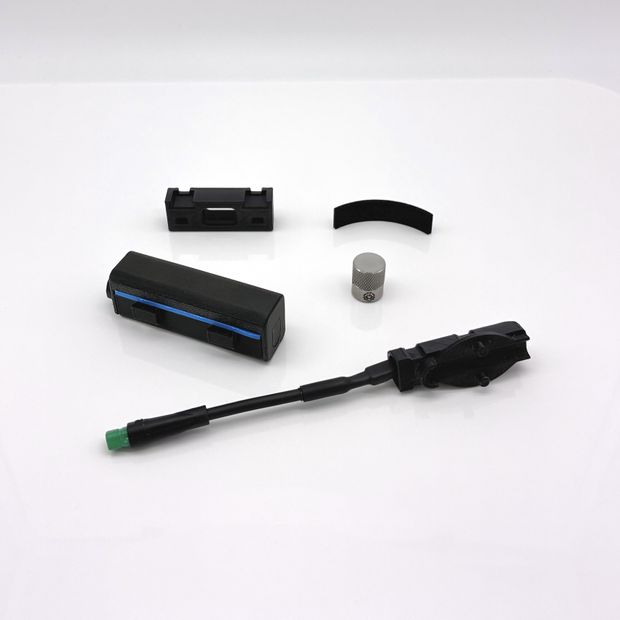

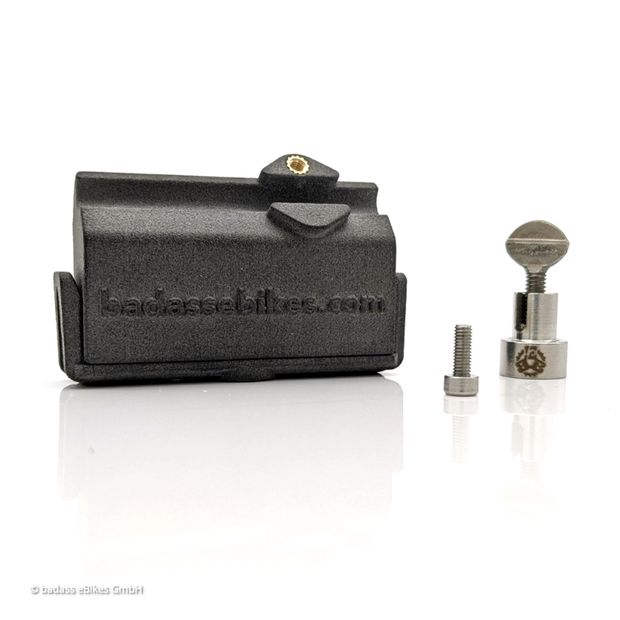

Attention, the badassBox 4 Shimano 2020 is only compatible with your bike if it has the integrated Shimano sensor SM-DUE11 (left picture) in the fork-end. If the integrated sensor looks like the right picture, it is the older SM-DUE10 from Shimano. Then you need the badassBox 4 Shimano X-Set. If the Shimano sensor SM-DUE10 (right picture) is easily accessible mounted on your chainstay, you only need a badassBox 4 Shimano 2019. Badass eBikes proudly presents: the new improved badassBox 4 Shimano 2020 The badassBox 4 is the result of over a year of development work. We've completely redesigned the case, made it slimmer made - which means that there are no longer any installation situations that are too tight. The badassBox runs on one AAA battery (included). Replacement for the supplied battery you get cheap and proverbial on every corner. You can replace it yourself anywhere without tools in no time. We recommend to replace the battery at least once a year at the start of the season. Through our specially developed and patented FEET (Field Enhancement & Elimination Technology), you will get very far with one battery. To protect from moisture and the mechanical mechanical stresses on the wheel, the electronics are glued into the housing with a special potting compound and completely sealed. We develop and manufacture the badassBox completely ourselves. Before and after casting we check each badassBox individually. Customer satisfaction and quality are our top priorities. If you have any questions, don't hesitate to ask – we'll get back to you with an answer straightaway, mostly on the same working day. Due to the high quality and our focus on customer satisfaction, we additionally offer a 1 month money-back guarantee. In a nutshell The badassBox is attached to the speed sensor of the e-bike and overrides the 25 km/h speed limit. Remove it and your e-bike is restored to its original state. Contactless e-bike tuning Streamlined, registered design for casing Patented snap-lock fastening Securing feature on the housing Patented field enhancement technology Auto industry potting compound Compatible with electronic gearshift (Di2) Doubled quality control Made in Germany One month money-back guarantee Installation The integrated Shimano sensor is located in the area of the fork-end. To access the sensor you will need to remove the rear wheel. Find the position of the integrated sensor in the fork-end of your e-Bike and loosen the screws that secure the sensor. Place the sensor in the recess provided on the badassBox. Attach the sensor to the badassBox using the cylinder head screw provided (you will need a 2 mm Allen key for this). Now you can mount the badassBox together with the sensor by means of cable ties (included) to the chainstay mount. For initial installation, the supplied spoke magnet must be mounted instead of the original magnet. Our spoke magnet works identically to the original magnet without badassBox, but with badassBox mounted, it is necessary for the function with our patented field amplification. The spoke magnet must be aligned next to the badassBox. To check the position of the magnet on the bike when it is stationary, lift the rear of the bike, turn the rear wheel (not the cranks!) and let it run. Pay attention to the speedometer or App of your bike. The indicated speed should be steady and slowly drop off as the rear wheel rolls out. If the spoke magnet touches the badassBox, the spoke magnet must be placed as close as possible to the badassBox and turned 90°. be rotated. Done! How it works The contactless and wireless badassBox transmits a modified signal in order to override the speed limit of your e-bike – without interfering with the motor's electronic circuitry or software. There's no need to open the motor and there is no risk of damaging it. The badassBox can be fitted in seconds – and just as quickly removed, restoring your e-bike to its former road-legal condition. For all these advantages, a wrong speed, and values derived from it, are displayed. We recommend the use of GPS-related accessories for a more precise data acquisition of driving data (smartphone, bike computer, etc.). Technical data Dimensions   61 x 39 x 18 mm Weight badassBox 28 g including battery 39 g Battery 1.5 V AAA battery (IEC R03)
